Two Column Layout - Admin Components

In this guide, you'll learn how to create a layout component that matches the Medusa Admin's design conventions for pages with two columns of content.

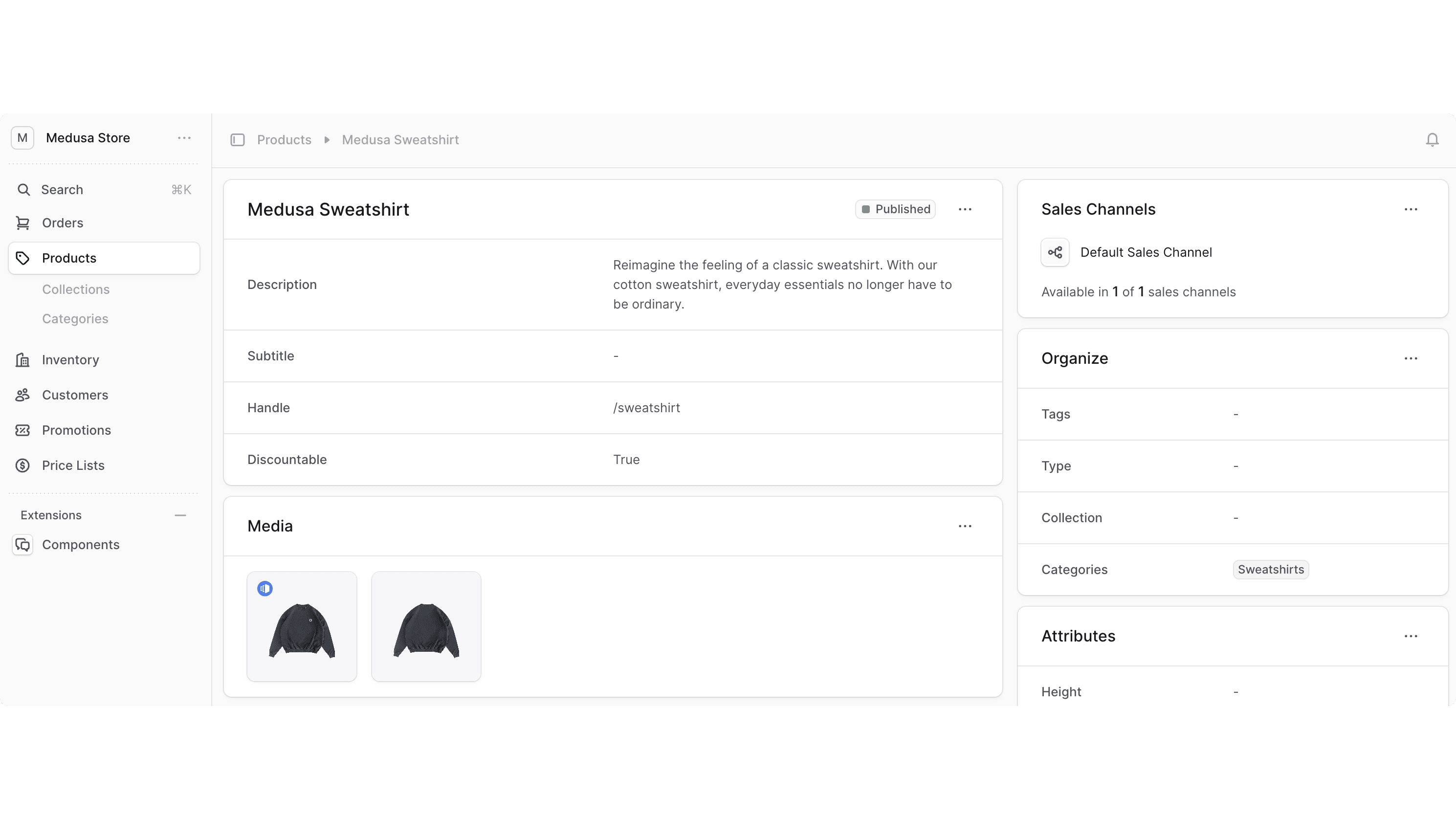

The Medusa Admin has pages with two columns of content.

To create a layout that you can use in UI routes to support two columns of content, create the component src/admin/layouts/two-column.tsx with the following content:

src/admin/layouts/two-column.tsx
1export type TwoColumnLayoutProps = {2  firstCol: React.ReactNode3  secondCol: React.ReactNode4}5
6export const TwoColumnLayout = ({ 7  firstCol,8  secondCol,9}: TwoColumnLayoutProps) => {10  return (11    <div className="flex flex-col gap-x-4 gap-y-3 xl:flex-row xl:items-start">12      <div className="flex w-full flex-col gap-y-3">13          {firstCol}14        </div>15        <div className="flex w-full max-w-[100%] flex-col gap-y-3 xl:mt-0 xl:max-w-[440px]">16          {secondCol}17        </div>18    </div>19  )20}

The TwoColumnLayout accepts two props:

• firstCol indicating the content of the first column.
• secondCol indicating the content of the second column.

Example#

Use the TwoColumnLayout component in your UI routes that have a single column. For example:

src/admin/routes/custom/page.tsx
1import { defineRouteConfig } from "@medusajs/admin-sdk"2import { ChatBubbleLeftRight } from "@medusajs/icons"3import { Container } from "../../components/container"4import { Header } from "../../components/header"5import { TwoColumnLayout } from "../../layouts/two-column"6
7const CustomPage = () => {8  return (9    <TwoColumnLayout10      firstCol={11        <Container>12          <Header title="First Column" />13        </Container>14      }15      secondCol={16        <Container>17          <Header title="Second Column" />18        </Container>19      }20    />21  )22}23
24export const config = defineRouteConfig({25  label: "Custom",26  icon: ChatBubbleLeftRight,27})28
29export default CustomPage

This UI route also uses Container and Header custom components.
