Single Column Layout - Admin Components

In this guide, you'll learn how to create a layout component that matches the Medusa Admin's design conventions for pages with a single column of content.

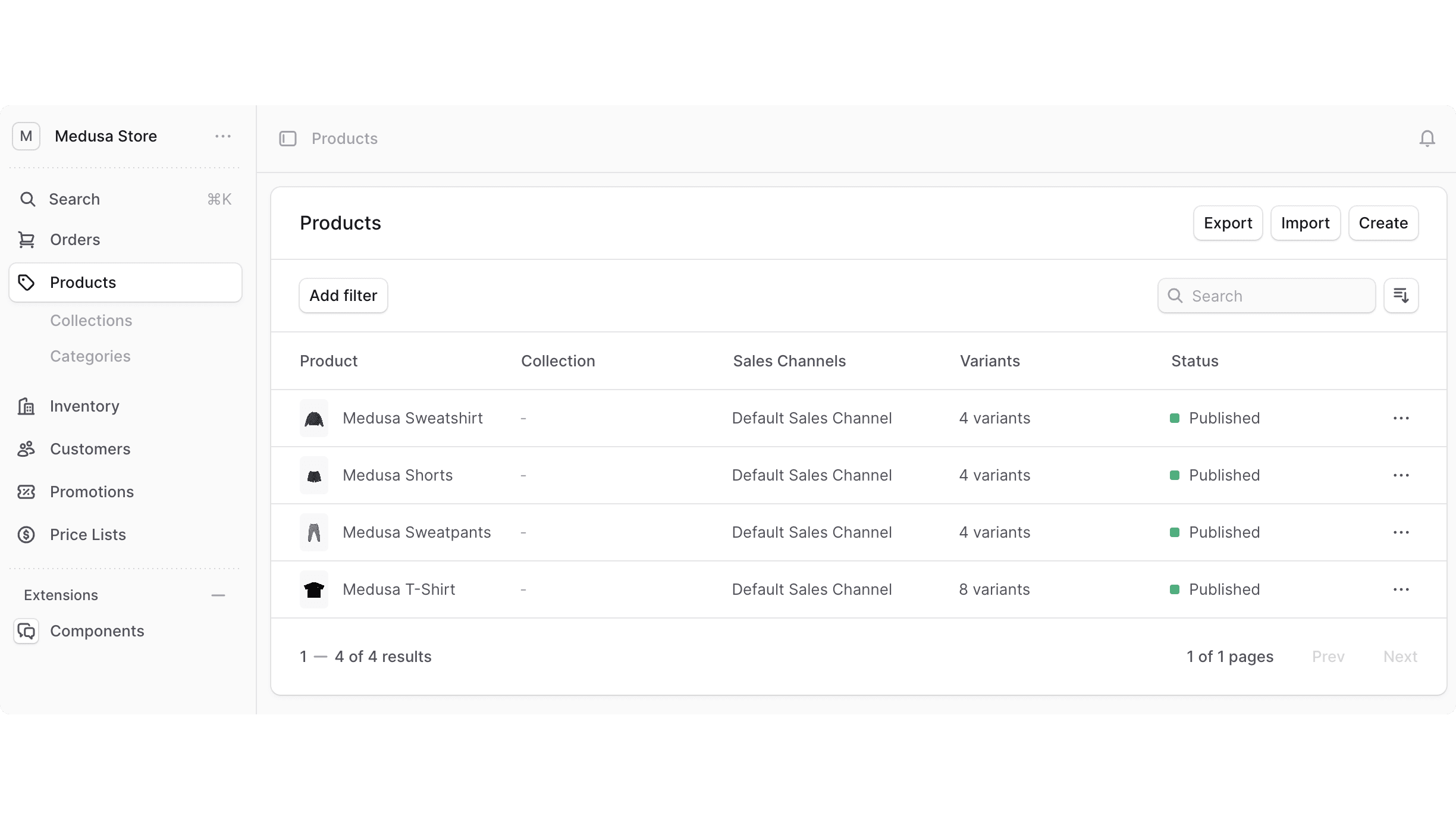

The Medusa Admin has pages with a single column of content.

To create a layout that you can use in UI routes to support one column of content, create the component src/admin/layouts/single-column.tsx with the following content:

src/admin/layouts/single-column.tsx
1export type SingleColumnLayoutProps = {2  children: React.ReactNode3}4
5export const SingleColumnLayout = ({ children }: SingleColumnLayoutProps) => {6  return (7    <div className="flex flex-col gap-y-3">8      {children}9    </div>10  )11}

The SingleColumnLayout accepts the content in the children props.

Example#

Use the SingleColumnLayout component in your UI routes that have a single column. For example:

src/admin/routes/custom/page.tsx
1import { defineRouteConfig } from "@medusajs/admin-sdk"2import { ChatBubbleLeftRight } from "@medusajs/icons"3import { Container } from "../../components/container"4import { SingleColumnLayout } from "../../layouts/single-column"5import { Header } from "../../components/header"6
7const CustomPage = () => {8  return (9    <SingleColumnLayout>10      <Container>11        <Header title="Custom Page" />12      </Container>13    </SingleColumnLayout>14  )15}16
17export const config = defineRouteConfig({18  label: "Custom",19  icon: ChatBubbleLeftRight,20})21
22export default CustomPage

This UI route also uses a Container and a Header custom components.
